Description

Note: NVidia has decided to revive the Jetson Nano B01 Developer kit at a higher price. However, the Jetson Nano 2GB, Xavier NX, and AGX Xavier are EOL (End Of Life).

Note: The Official NVidia Jetson Nano B01 Dev kit comes with a Non-Production System on Module (SoM). It is meant for development, and not for production deployment. NVidia does not recommend this dev kit for 24 hours of operation, or in the industrial temperature range. For production deployment, please get the dev kit with production SoM:

Note: This page has three (3) NVidia Jetson Nano B01 options. Please choose the preferred kit:

Note: From 21st March 2023 onwards, the camera included in the Beginner Kit is changed to Raspberry Pi 8MP Camera Module V2.1.


Beginner Kit	Basic Kit	Dev Kit only

These are Jetson Nano B01 Kits for you to get started with the Jetson Nano B01 AI development board. Discover the power of AI and robotics with the NVIDIA^® Jetson Nano™ B01 Developer Kit. It's small, powerful, and priced for everyone. Here are several examples of what developers are doing with Jetson Nano:

Here is an unboxing video of this kit by Cytron Technologies (Feb2023):

Here is the getting started video by NVidia Jetson team:

Another good example from JetsonHacks, getting started with Jetson Nano A02 (an earlier version of the dev kit) and Raspberry Pi Camera Module V2:

Here's NVIDIA Jetson. The Jetson Nano delivers the performance to run modern AI workloads in a small form factor, is power-efficient (consuming as little as 5 Watts), and low cost. Developers, learners, and makers can run AI frameworks and models for applications like image classification, object detection, segmentation, and speech processing. The developer kit can be powered by a micro-USB or 2.1mm DC Barrel Plug and comes with extensive I/Os, ranging from GPIO to CSI. This makes it simple for developers to connect a diverse set of new sensors to enable a variety of AI applications.

Jetson Nano is also supported by NVIDIA JetPack™, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The software is even available using an easy-to-flash SD card image, making it fast and easy to get started.

The same JetPack SDK is used across the entire NVIDIA Jetson family of products and is fully compatible with NVIDIA’s AI platform for training and deploying AI software. This proven software stack reduces complexity and overall effort for developers.

The beginner and basic kits come with a 64GB, Class 10, U1, A1 grade MakerDisk microSD card, preloaded JetPack, ready to boot up on the Jetson Nano B01 board. Please DO NOT format it if you intend to use it with the board.

The JetPack includes:

Desktop Linux with NVIDIA drivers
AI and Computer Vision libraries and APIs
Support for cloud-native technologies such as containerization and orchestration
Developer tools, documentation, and sample code

In case you intend to use any other version of JetPack or OS, we also include a cute little USB microSD Card Reader and Writer together as a free gift in the beginner and basic kits! It's compact, lightweight and it's wicked fast. Supports up to 128 GB SDHC cards! Simply slide the card into the edge, flip it over, and plug it into your computer's USB port. No driver is required, it shows up as a standard 'Mass Storage' device under any OS. Download the BalenaEtcher or Raspberry Pi Imager to load the JetPack into the MicroSD.

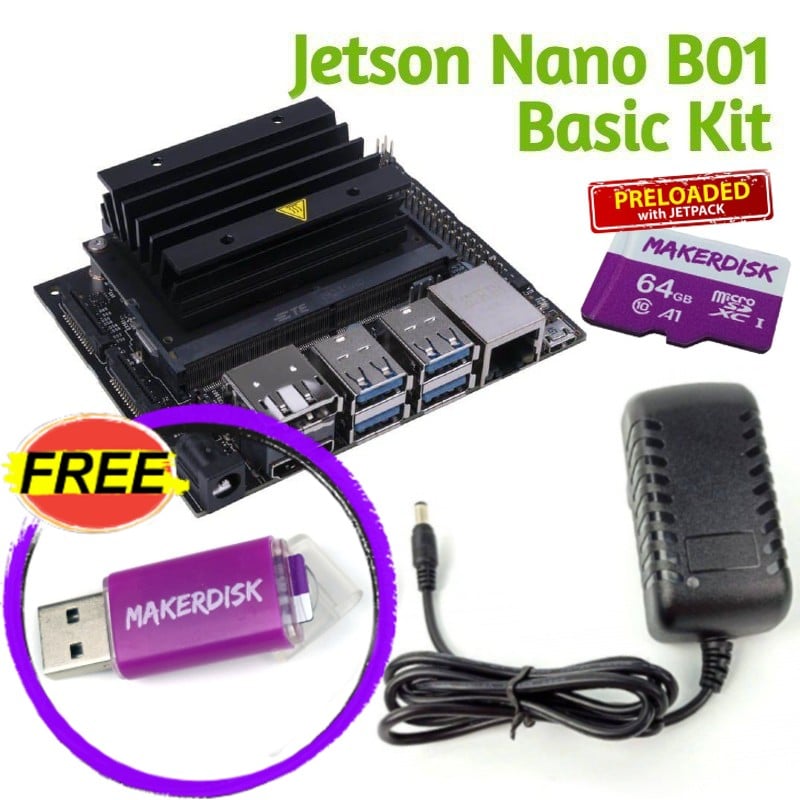

Both the beginner and basic kits come with a 5V 4A 2.1mm DC Barrel Plug Power Adapter - UK Type to power up your Jetson Nano B01 Dev board.

The following shows an NVIDIA Jetson Nano B01 Developer Board that connects with this adapter:

The Power SMD LED will light up if the board is powered up. If the development board is powered via the DC barrel jack, a mini jumper is needed on J48 (connect both pins).

The NVIDIA Jetson Nano development board will need high power during development and testing. When you use a 5V 4A power supply, you can satisfy all application use cases. Under a stress test, the CPU and GPU will be in a full load. At the same time, the whole system can reach 3.5A, and the 4A power supply can meet all the needs.

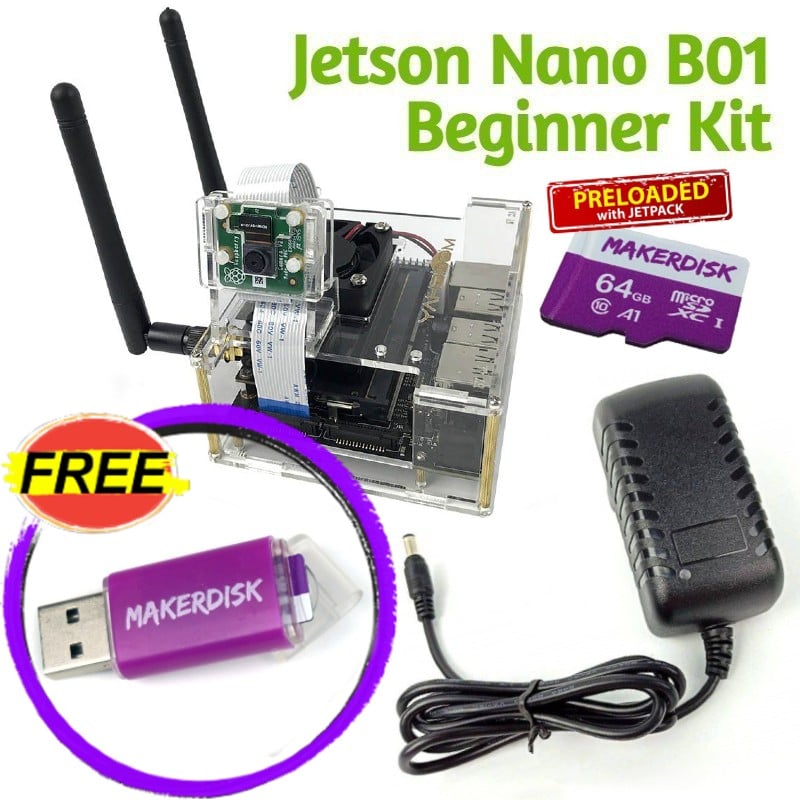

For the Beginner Kit, we also included an Raspberry Pi 8MP Camera Module V2.1 (which is compatible with Jetson Nano), an acrylic case, and an acrylic camera mount for a little bit more fun! Since the NVIDIA Jetson Nano development board does not come with any wireless module, you will also get an AC8265 WiFi Bluetooth NIC Module.

Note: From 21st March 2023 onwards, the camera included in the Beginner Kit is changed to Raspberry Pi 8MP Camera Module V2.1.

The Raspberry Pi Camera Module V2.1 is the new improved official camera board from the Raspberry Pi Foundation! It features an ultra-high quality 8MP(megapixel) SONY IMX219 image sensor (up to 5MP on the V1 camera board), and a fixed focus lens. This V2 camera module is capable of 3280 x 2464 pixel static images, and also supports 1080p @30fps, 720p @ 60fps and 640x480p90 video.

Here's a video on Running Raspberry Pi Camera V2 in OpenCV by Paul McWhorter, for your reference:

The AC8265 WiFi Bluetooth NIC Module for Jetson Nano with M.2 interface can be fixed to the Jetson Nano B01 board for wireless communications offering WiFi and Bluetooth. The wireless card is fixed onto the Jeston Nano board by screws and the antenna can be attached to the acrylic case. It requires no driver installation and supports 5G/2.4G dual-band wifi, wide network coverage, coupled with a 3dBi higher gain dual antenna, even if in a complex wireless environment with multi-interference, it can also have good wireless penetration, making data reception smoother.

Features

Ofiicial Jetson Nano B01 Dev Kit:

Jetson Nano Rev: B01
Non-production System on Module, strongly NOT recommended for deployment. Only for training and development.
GPU: 128-core Maxwell™ GPU
CPU: Quad-core ARM A57
Memory: 4 GB 64-bit LPDDR4 25.6 GB/s
Storage: MicroSD slot on the SoM (Please choose the kit for the microSD with Jetpack)
Video Encoder: 4Kp30| 4x 1080p30| 9x 720p30 (H.264/H.265)
Video Decoder:4Kp60| 2x 4Kp30| 8x 1080p30| 18x 720p30| (H.264/H.265)
Power input:
- Micro-USB 5V, low power mode
- DC Power 5V 2.1mm DC Barrel, upto 4A, high power mode
Camera: 2 x MIPI CSI-2 DPHY lanes
Connectivity: Gigabit Ethernet, M.2 Key E expansion connector (Recommendation: AC8265 Dual-mode NIC)
Display: HDMI and DP
USB:
- 4 x USB 3.0
- USB 2.0 Micro-B
Extension interface:
- GPIO
- I2C
- I2S
- SPI
- UART
Fan connector
PoE connector
Dimensions: 100mm x 80mm x 29mm

64GB MakerDisk MicroSD card Preloaded with Jetpack:

A microSD card from Makers to Makers!
Brand: MakerDisk
Capacity/Size: 64GB
- 1GB = 1,000,000,000 bytes.
- Actual usable capacity may be less, depending on the format. From JetPack OS, here is the capacity from file explorer, excluding the boot drive: ~ 56.9GB
- Check the capacity calculation from Wiki.
Pre-loaded with JetPack OS, it is ready to boot up on Jetson Nano B01 right out of the box!
The test results are better than Class A1 and Raspberry Pi Standards, which is definitely great for Jetson!
- Class 10, A1, U3, V30 microSD card
- Random IOPS - Read: > 2700 IOPS (A1 standard 1500 IOPS, Raspberry Pi Standard 2000 IOPS)
- Random IOPS - Write: > 800 IOPS (A1 standard 500 IOPS, Raspberry Pi Standard 500 IOPS)
- Sequential Write: > 32MB/S (A1 Standard 10MB/S, Raspberry Pi Standard 12MB/S)

USB microSD Card Reader and Writer (Free gift):

Compact and lightweight
Support most OS: Win7,8,10, MacOS, LINUX
USB2.0 Speed
Plug and use
Support up to 128GB microSD card
No driver is needed
Both Read and Write functions
Dimension: 15mm x 7mm x 24.8mm

5V 4A DC Barrel Jack 2.1mm Power Adapter-UK Plug:

Input: 100-240V ~50/60Hz 0.7A Max
Output voltage: 5VDC
Maximum output current: 4A
Plug: UK Plug, Type G
Terminated with DC Barrel Plug (5.5mm outer, 2.1mm inner)

Raspberry Pi 8MP Camera Module V2.1

Sony IMX219 chip, CSI interface
8MP, 1080P resolution
Wide range of applications
Compatible with Acrylic Case Holder for Camera Module
Connects to the Nvidia Jetson Nano via a short ribbon flexible cable (included)

AC8265 Wireless Module

No driver installation is needed, plug and use
Supports 5G/2.4G dual-band wifi
IEEE 802.11ac
Supports Bluetooth / WiFi dual mode
Superior quality, coupled with two 3db large gain antennas, transmission speed up to 867Mbps
The antenna can be rotated within 90°, the user can adjust the angle to improve signal sensitivity
Compatible with NVIDIA Jetson Nano B01 and A02
Compatible with the acrylic case, two antennas can be fixed on the case too.

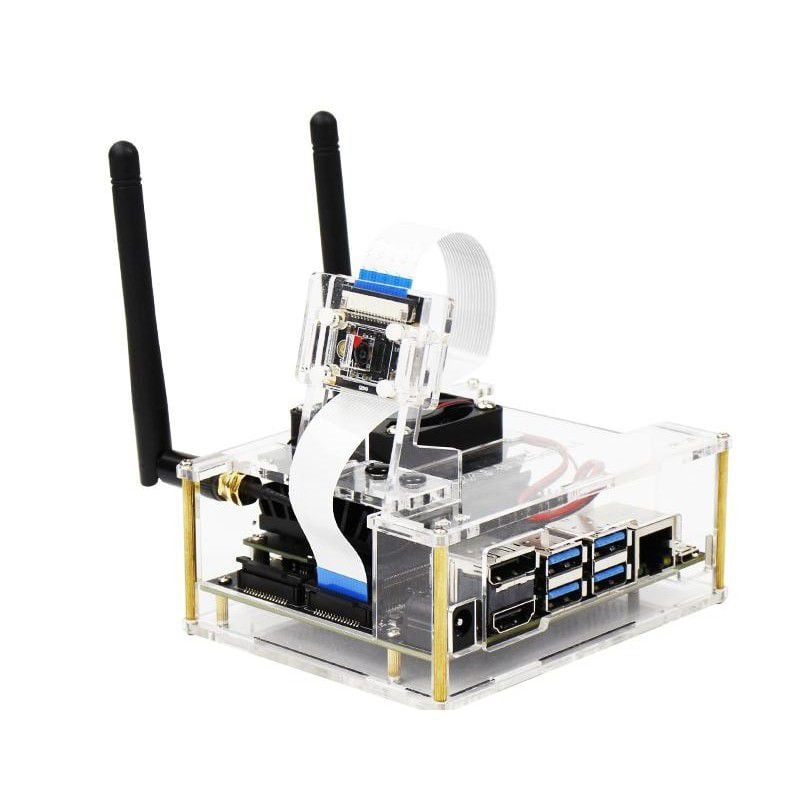

Acrylic Case with Cooling Fan for Jetson Nano 4GB:
